Vibration Meter &
Lubrication
Monitor
Monitoring & Control of the Lubrication Process + Vibration Data Collector.
Intrinsically Safe EX Version available.
Built for Bearing Health & Lubrication Control

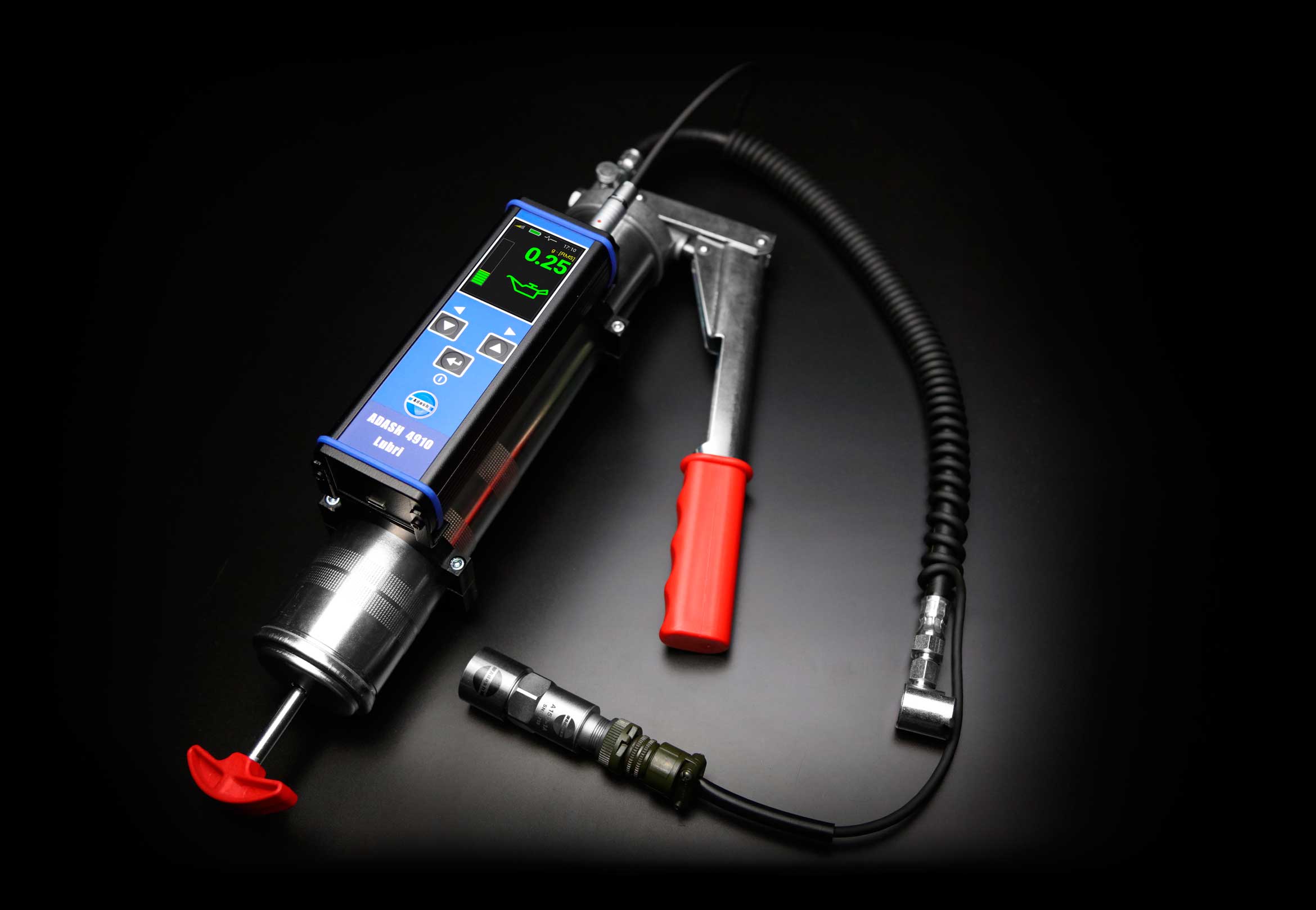

The A4910 Lubri combines real-time lubrication monitoring with vibration data collection, enabling maintenance teams to optimize greasing routines and prevent premature bearing failures.
Ensures every bearing receives the precise amount of grease—no more guessing. Extend bearing lifetime significantly with data-driven lubrication.
Add only the necessary amount of grease into a bearing. Keep pumping and watch the vibration value decrease—stop when the reading stabilises.
Measure, store and trend bearing and whole-machine-body vibrations. Off-route and route-based measurement modes supported via free DDS software.
Built-in AC output (8 Ω / 0.5 W) for external headphones allows direct audible bearing condition assessment—a unique diagnostic advantage.
Colour graphic TFT 2.2" display (240×320 px) is fully sunlight-readable—ideal for outdoor or brightly lit industrial environments.
Rechargeable Li-Ion battery provides up to 16 hours of continuous operation. Charges via USB-C for universal compatibility and fast turnaround.
Greasing Under Control — Instantly
The A4910 Lubri displays pre-defined lubrication status indicators directly on screen so any maintenance technician can act immediately without interpretation.
Vibration value is critically high. Bearing is under-lubricated. Begin greasing immediately to prevent damage.
Vibration is only slightly decreasing. Continue adding grease — the bearing is not yet fully lubricated.
Vibration values have dropped to a good level. The bearing is properly lubricated. Stop greasing.
Velocity (mm/s) for whole-machine body. Acceleration (g) for bearing condition. Both visible simultaneously.
3 selectable frequency bands detect highest acceleration signals for precise bearing condition diagnosis.
All Predefined — Ready Instantly
Five fully pre-configured measurement modes cover all critical bearing and machine-body vibration parameters. No setup required in the field.
500 – 16,000 Hz
500 – 16,000 Hz
10 – 1,000 Hz
10 – 1,000 Hz
500–1,500 / 1,500–5,000 / 5,000–16,000 Hz
8 Ω / 0.5 W AC
Full Specifications
Complete technical parameters for the Adash A4910 Lubri Vibration Meter, Analyzer and Data Collector.
| Input / Output & Measurements | |
|---|---|
| Sensor Input | 1× ICP® powered accelerometer — 100 mV/g sensitivity |
| Audio Output | 1× AC signal — 8 Ω / 0.5 W — for external headphones (signal listening) |
| Acceleration RMS | 500 – 16,000 Hz [g] |
| Acceleration Peak | 500 – 16,000 Hz [g] |
| Velocity RMS | 10 – 1,000 Hz [mm/s, ips] |
| Velocity Peak | 10 – 1,000 Hz [mm/s, ips] |
| Frequency Bands | 500–1,500 Hz | 1,500–5,000 Hz | 5,000–16,000 Hz [g] |
| Hardware & Physical | |
|---|---|
| Display | Colour graphic TFT — 240 × 320 pixels — Diagonal 2.2" (54 mm) — Sunlight readable |
| Memory | 4 MB internal storage |
| Interface | USB 3.0 (USB 2.0 compatible) |
| Charging Port | USB-C |
| Power Source | Rechargeable Li-Ion battery |
| Battery Life | Up to 16 hours of continuous operation |
| Dimensions | 150 × 60 × 35 mm |
| Weight | 440 g — with grease gun mounts, without cable, sensor and magnet |
| Software, Data & Connectivity | |
|---|---|
| Software | Free version of DDS (Digital Diagnostics System) software — limited database size |
| Data Storing Modes | Off-Route | Route (with DDS software) |
| Stored Measurements | Acceleration [g] — bearing condition | Velocity [mm/s / ips] — machine body condition |
| Data Import | Import route data into DDS for trending and analysis |
| Trending | Follow vibration trends and observe machine condition over time via DDS software |
DDS – Digital Diagnostics System
The A4910 Lubri is fully compatible with Adash's free DDS software — a professional trending and data analysis platform for vibration data management.
Collect, Import & Trend
Collect bearing and machine-body vibration data regularly with the A4910 Lubri, then import into DDS software to follow vibration trends and observe the actual condition of your machines over time.
DDS supports route-based data collection — configure measurement routes on your PC, download to the device, collect on the plant floor, then upload back for automated trend analysis and reporting.
Free version available with limited database size — ideal for small to medium fleets. Full version available for enterprise-scale deployments.
Documentation & Software Downloads
All official resources for the Adash A4910 Lubri — datasheets, step-by-step user guides, and analysis software.
Official A4910 Lubri product leaflet with full specifications, features, and ordering information from Adash.
PDF · English 📋Comprehensive step-by-step operational guide for the A4910 Lubri — from initial setup to routine data collection and DDS import.
PDF · English 💻DDS 2026 v4.1.3.5 — Free version for A4910 Lubri (and Vibrio M). Windows installer. Route management, trending, and vibration analysis.
EXE · Windows · FreeContact Alpha Industrial Services
For product enquiries, demonstrations, quotes, or technical support — reach our team directly.
Lalbagh, Dhaka – 1211
Bangladesh
Adash Authorized Partner
Serving Bangladesh & surrounding regions with genuine Adash products, technical support, and aftersales service.
