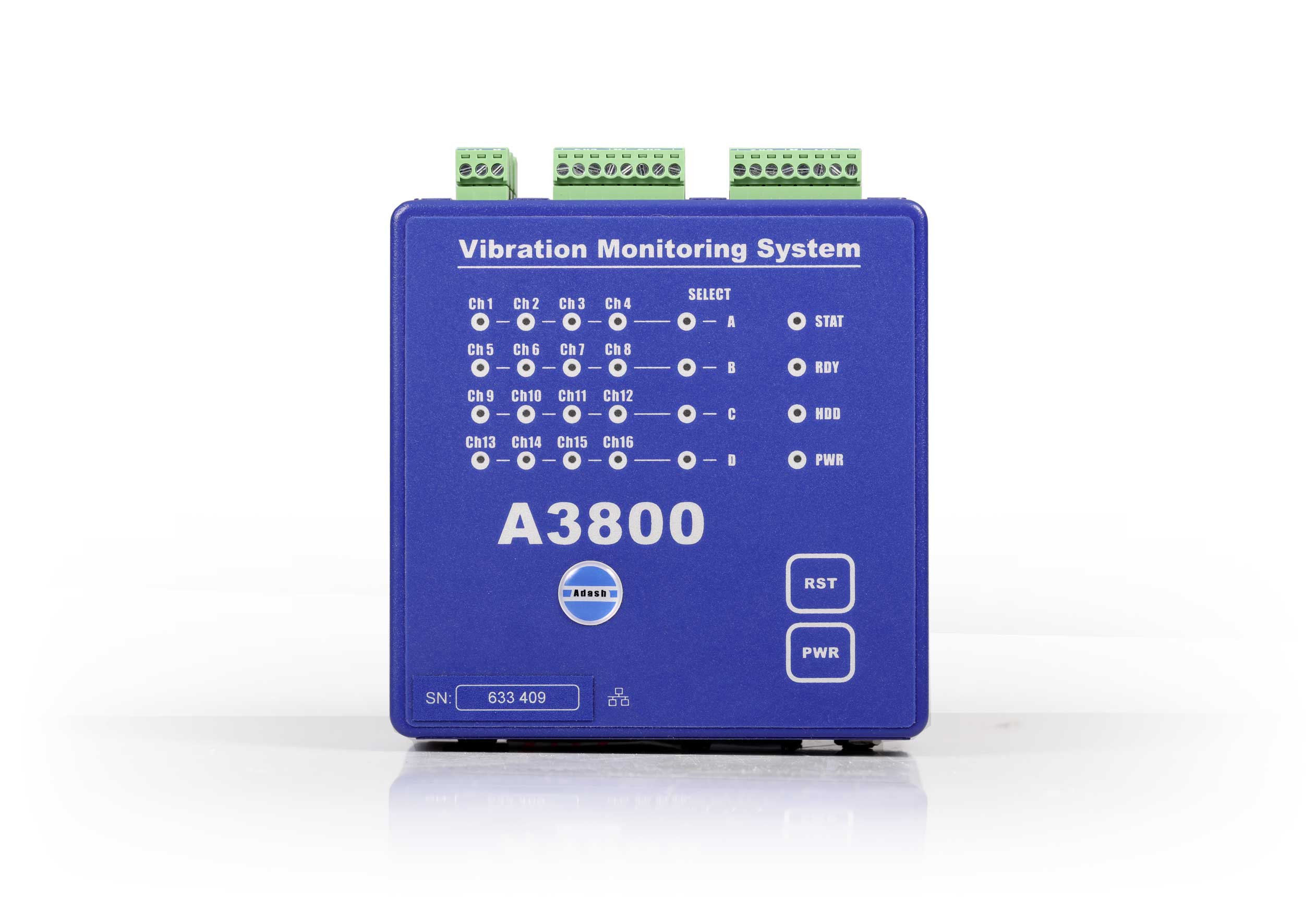

Adash A3800 Series
Adash SAB
Adash SAB
Online Vibration Monitoring
Monitor your critical machinery 24/7
4–16 Channels
Ethernet / Wi-Fi
24-bit ADC
Scalable On-Demand
Next‑Gen Intelligence
SCALABLE ON DEMAND
Upgrade from 4 to 8, 12 or 16 channels via email. Each group of 4ch has Tacho input.
Collect Data with DDS
Seamless DDS software integration. Ethernet or Wi-Fi data collection.
Analyze with Virtual Unit
Multichannel analyzer via VA5 Pro (free download).
Application Scheme — Online Vibration Monitoring
Technical Specifications
| Input Channels AC | 4 - 16 AC, ICP® supply, 100kΩ, integration single/double |
|---|---|
| Input Channels DC | 4 - 16 DC for process values, 100kΩ / 250Ω |
| TACHO Inputs | 1 – 4 independent, 0.8 Hz – 1000 Hz |
| Input Range | AC ±12V, DC ±24V or 4-20mA, TACHO +10V |
| AD Conversion | 24 bit, 64-bit float, No AutoGain |
| Dynamic Range S/N | 120 dB |
| Frequency ranges | max. 25.6 kHz (16 Ch, 65.5 kHz sampling) |
| Sampling Mode | Fully simultaneous for group of 4 channels |
| FFT Resolution | 100 to 25,600 lines |
| Processor / RAM / SSD | Intel Atom E3815, 2GB RAM, 32GB SSD |
| Data Acquisition | Overall values, Time signals, FFT, DEMOD, ACMT, order, orbit, RPM |
| Signal Recorder | 64 kHz sampling, 4Ch total recording 10 hours |
| Communication | Ethernet 1GB RJ45, Wi-Fi |
| Temperature / Power | -10°C to +50°C / DC 12V |
| Case & Weight | Aluminium box, 117x117x58 mm, 800g |
Key Features
Real-time FFT & Envelope
Demodulation & ACMT for low-speed bearings.
24-bit high SNR
120dB dynamic range.
Scalable Architecture
Add channels via software.
Orbit & Order Analysis
Turbomachinery diagnostics.
Relay & loops ready
Alarm and control integration.
Network & Wi-Fi
Data to DDS or SCADA.
Measurement Capabilities
Overall Values
Velocity, Acceleration, Displacement
FFT & Envelope
Real-time spectral analysis
Demod / ACMT
Low speed bearing faults
Order Tracking
RPM / Orbit measurement
