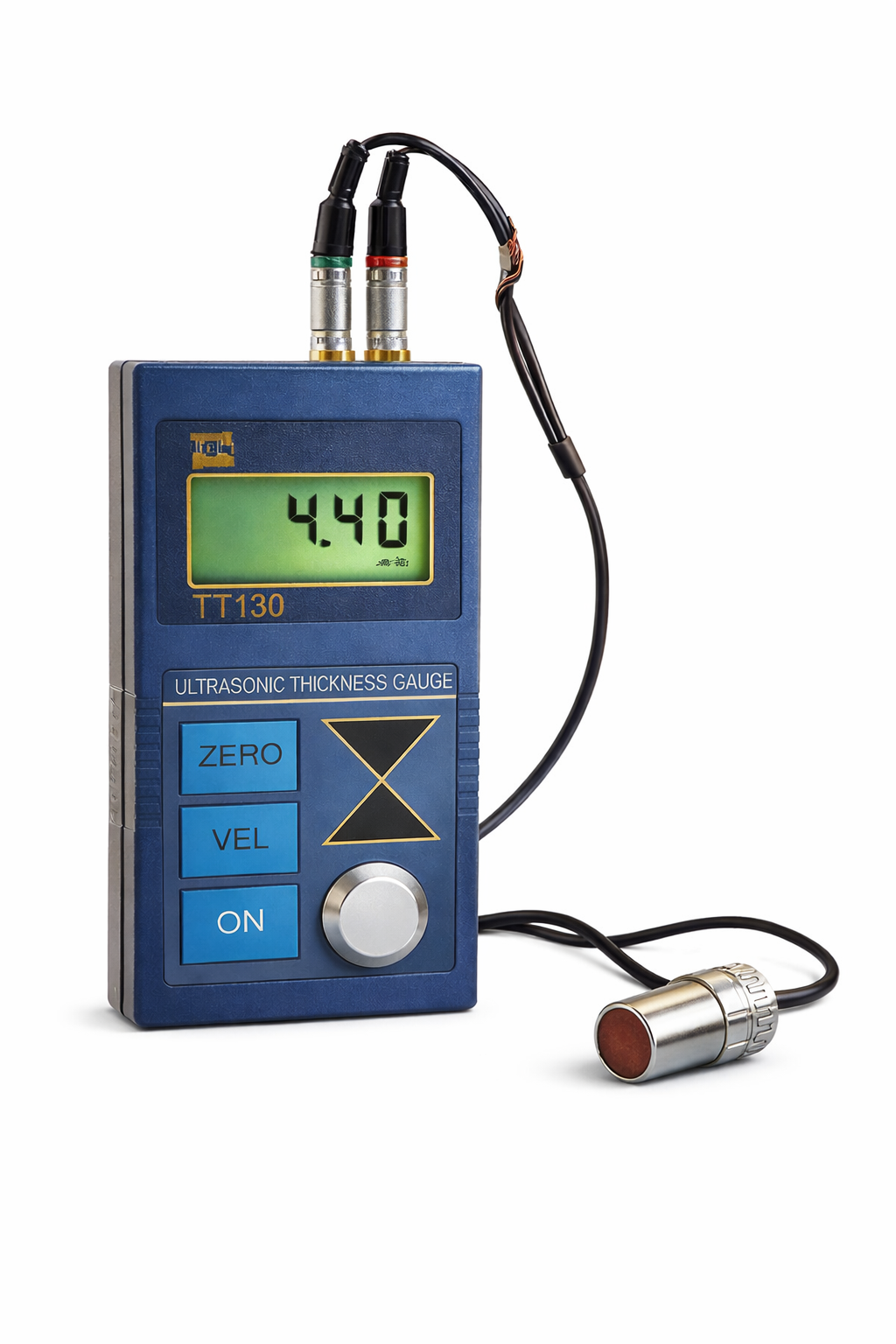

TIME TT130
Ultrasonic Thickness Gauge
High-precision digital thickness measurement for metals, plastics, ceramics & more. Non-destructive testing redefined.
Technical Specifications
| Measuring Range | 1.0 mm – 300.0 mm (steel, depending on probe & material) |
|---|---|
| Resolution | 0.1 mm (optional 0.01mm with calibration) |
| Accuracy | ±(0.5% of reading + 0.1) mm |
| Sound Velocity Range | 1000 m/s ~ 9999 m/s |
| Probe Type | Single element, 5MHz, Φ10mm, (optional: 2MHz, 10MHz) |
| Minimum Pipe Diameter | Φ20mm x 3.0mm (steel) |
| Display | 4-digit LCD with backlight |
| Units | mm / inch selectable |
| Power Supply | 2 x AA 1.5V batteries (approx. 200h operation) |
| Auto Power Off | After 2 minutes inactivity |
| Operating Temperature | -10°C to 50°C |
| Dimensions | 130mm x 73mm x 24mm |
| Weight | Approx. 230g (including batteries) |
| Standards Conformity | ASTM E797, EN 14127 |
Key Features
High-Speed Scan
Real-time thickness measurement with instantaneous response
Dual-Point Calibration
Linear accuracy compensation for various materials
Data Hold & Internal Storage
Store up to 500 readings for later review
Backlit Display
High contrast LCD for dark environments
Intuitive Interface
Simple keypad operation with auto velocity table
Auto Zero & Material Velocity
Quick setup with pre-defined velocity table
Measurement Capabilities & Status
Thickness Range
1.0 – 300mm (steel) · Resolution 0.1/0.01mm
Active readyProbe Status
5MHz Standard · Coupling indicator ✔️
Battery & Auto-off
AA x2 · Power indicator · Auto shutdown after 120s
Battery level simulated: OKMaterial Velocity
Adjustable 1000~9999 m/s · Pre-sets for steel, aluminum, copper
Downloads & Resources
Official Datasheet
Complete technical datasheet of TIME TT130 Ultrasonic Thickness Gauge.
Download PDFAuthorized Distributor
Alpha Industrial Services
266/Ka, Jagannath Shaha Road, Lalbagh, Dhaka-1211, Bangladesh
+880 1795740741 (Click to WhatsApp)
Official partner of TIME Group Inc.
Genuine products & certified after-sales
