Adash A3716
16 AC + 16 DC Channel 19-Inch Rack Online Monitoring System

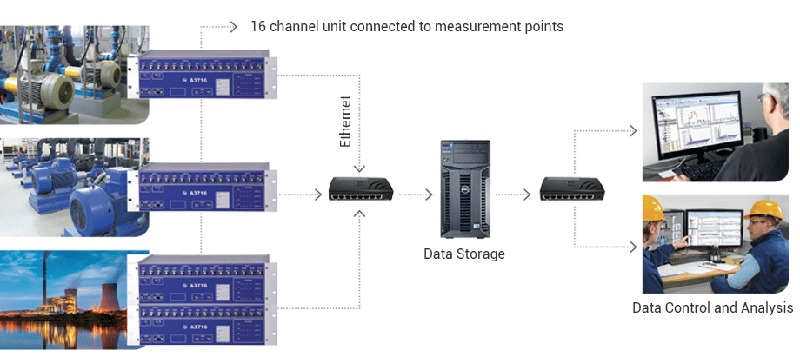

The Adash A3716 is a high-density 19-inch 2U rack-mountable online vibration monitoring and diagnostic system designed to protect critical turbomachinery, generators, turbines, and large industrial plant assets 24/7. Equipped with 16 AC vibration channels + 16 DC process channels + 4 Tacho inputs, an Intel Core2 2.5 GHz engine, 128 GB SSD storage, and full Adash DDS integration.
Key Capabilities of Adash A3716
Rack-mounted continuous monitoring for power plants, refineries, and heavy machinery.
Standard 19-Inch 2U Rack Format
Seamlessly installs into standard 19" control cabinets alongside existing DCS, PLC, and machinery protection hardware.
16 AC + 16 DC Dual Inputs
Simultaneously processes 16 high-speed vibration channels and 16 DC process variables (temperature, pressure, flow) for full asset correlation.
128 GB SSD High Capacity Storage
High-performance internal SSD allows months of continuous raw time-signal recording and transient event history playback.
Intel Core2 Processor Engine
High-speed 2.5 GHz Intel computing architecture handles complex 25,600-line FFT calculations and real-time alarm evaluations.
Industrial Modbus & OPC Integration
Streams overall values, alarm statuses, and spectra directly into SCADA, DCS, Modbus TCP, and OPC UA automation networks.
Relay Output Alarm Contacts
Integrated relay contact outputs trigger external sirens, warning lights, or automated emergency trip signals during severe vibration.
Technical Specifications
Drag with mouse or click tabs below to inspect A3716 rack parameters.
16-Channel High Density Protection with Adash A3716
Contact Alpha Industrial Services—Authorized distributor & certified service partner for Adash in Bangladesh.
