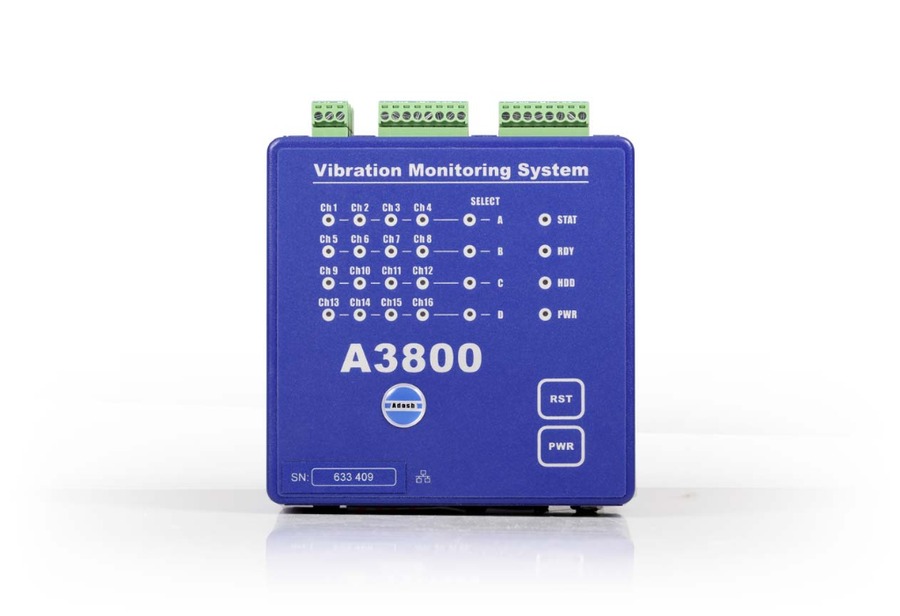

Adash A3800
Compact 4 to 16 Channel Online Vibration Monitoring System
The Adash A3800 is a compact 24/7 online vibration monitoring and diagnostic system designed for critical industrial machinery. Available in 4, 8, 12, or 16-channel configurations, the A3800 features software-based channel upgrades, 120 dB dynamic range S/N, onboard SSD storage, and seamless Ethernet/Wi-Fi/4G transmission into Adash DDS predictive maintenance software.
Key Capabilities of Adash A3800
Continuous condition monitoring, automatic alert triggering, and full spectrum analysis.
Flexible Channel Upgrades
Start with a 4-channel base unit and upgrade to 8, 12, or 16 channels remotely via software licence key without hardware replacement.
32 GB Onboard SSD Storage
Stores overall values, time waveforms, FFT spectra, and transient run-up/coast-down data locally even during network disconnects.

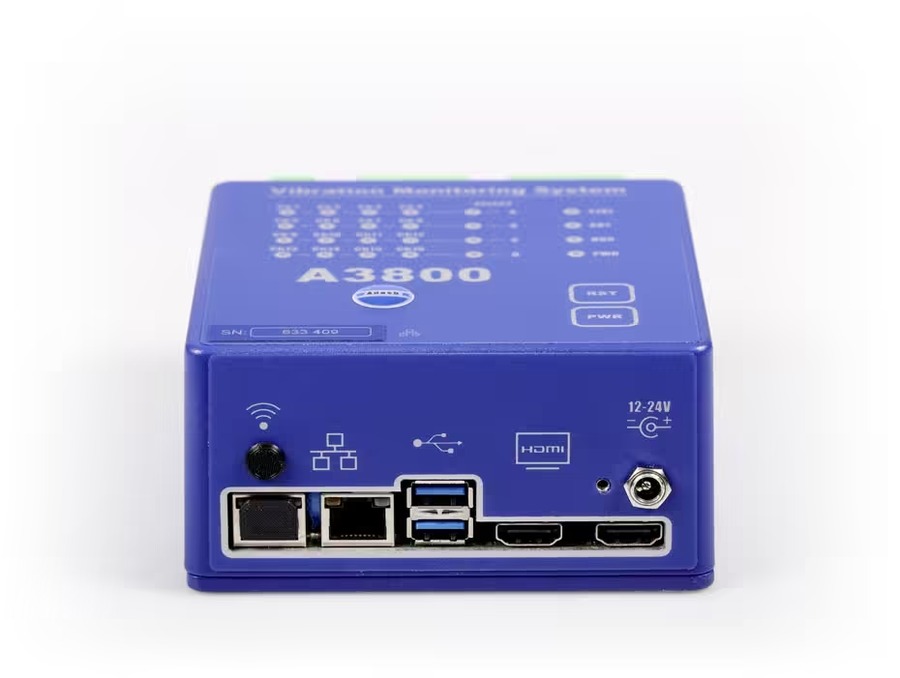

Remote Network Connectivity
Includes 1 Gbps RJ45 Ethernet, Wi-Fi, and optional 4G LTE cellular router for cloud or local server data streaming.
Adash DDS Software Integration
Seamlessly manages database structures, automatic ISO 10816 threshold limits, trend graphs, and email alarm notifications.
Virtual Unit Live Analyzer
Connect remotely using VA5 Pro Virtual Unit software to perform real-time multichannel signal analysis from anywhere in the world.
Rugged IP65 Casing
Heavy-duty industrial IP65 aluminum housing designed for harsh factory environments, power plants, and oil refineries.

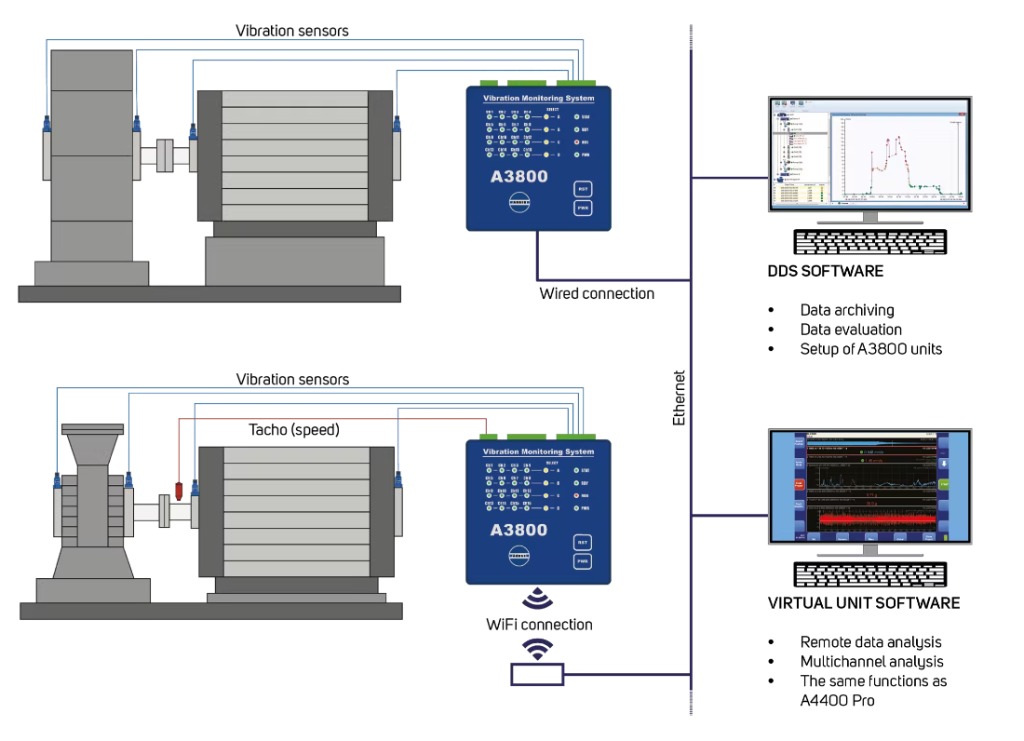

A3800 Online Network Topology
Flexible sensor wiring, Wi-Fi/Ethernet connectivity, and dual software integration.
Click to Enlarge Diagram
Industrial Sensor Integration

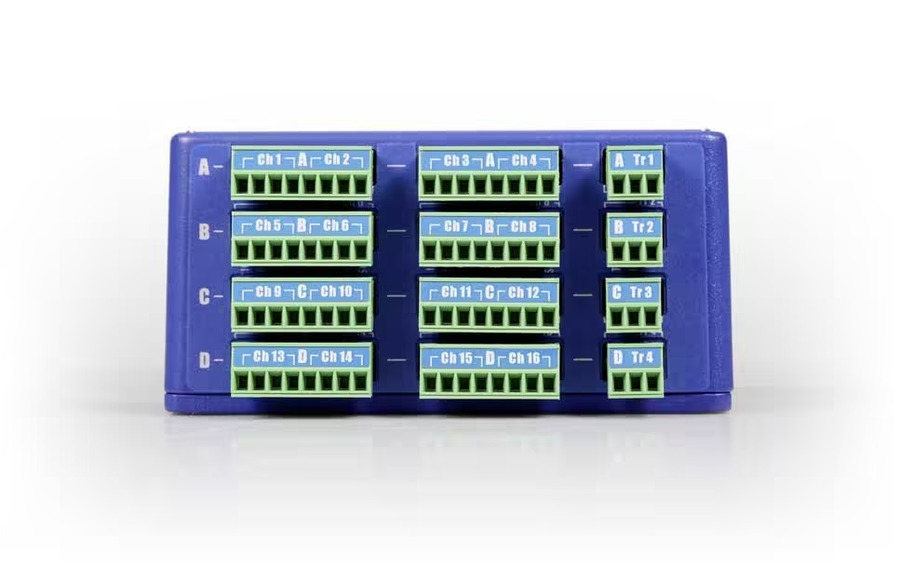

Direct wiring for up to 16 vibration sensors (ICP accelerometers) + Tacho optical speed sensors installed on critical motors, pumps, and fans.
Dual Wired & Wi-Fi Transmission
Flexible deployment via direct wired Ethernet cable or high-speed Wi-Fi wireless router connection over local industrial network.
Dual Software Compatibility
Streams live data into DDS Software (archiving & auto alarms) and Virtual Unit Software (remote real-time 16-channel analysis).
Advanced Diagnostics & Live Analysis Software
Operate the A3800 via Adash DDS 2014 Online Software & VA5 Pro Virtual Unit interface.
Click to Enlarge
Adash DDS 2014 Online Software
The DDS (Digital Diagnostics System) software is the core engine for setting up and managing your A3800 online monitoring network. Build your factory machine structure, configure automated 4-window live graph monitoring, track overall vibration trends, and generate automatic email alerts when ISO 10816 thresholds are breached.
- Multi-window 2D/3D waterfall spectrum & time waveform views
- Automatic ISO 10816 machinery health alarm evaluation
- Remote database synchronization via Ethernet or Wi-Fi
Click to Enlarge

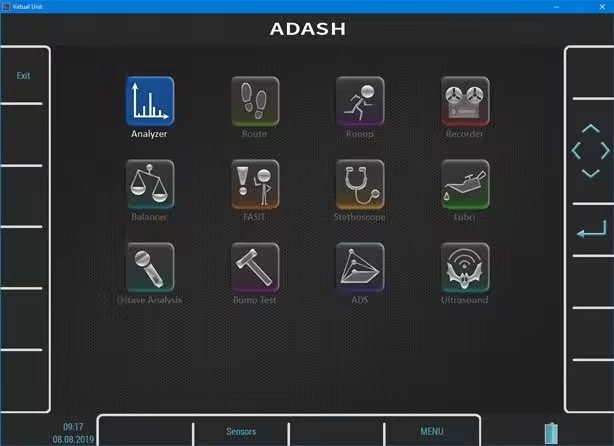

VA5 Pro - Virtual Unit Software
Turn your computer into a full flagship 4 to 16-channel analyzer! Free download of VA5 Pro - Virtual Unit enables live remote control of the A3800 hardware to perform dynamic balancing, run-up/coast-down analysis, FASIT automatic fault detection, and raw signal recording.
- Full analytical suite (Balancer, Runup, FASIT, Stethoscope, ADS)
- Remote live signal monitoring over local network or VPN
- Free software interface for all Adash A3800 system users
Technical Specifications
Drag with mouse or click tabs below to inspect A3800 system parameters.
Protect Critical Machinery 24/7 with Adash A3800
Contact Alpha Industrial Services—Authorized distributor & certified service partner for Adash in Bangladesh.
