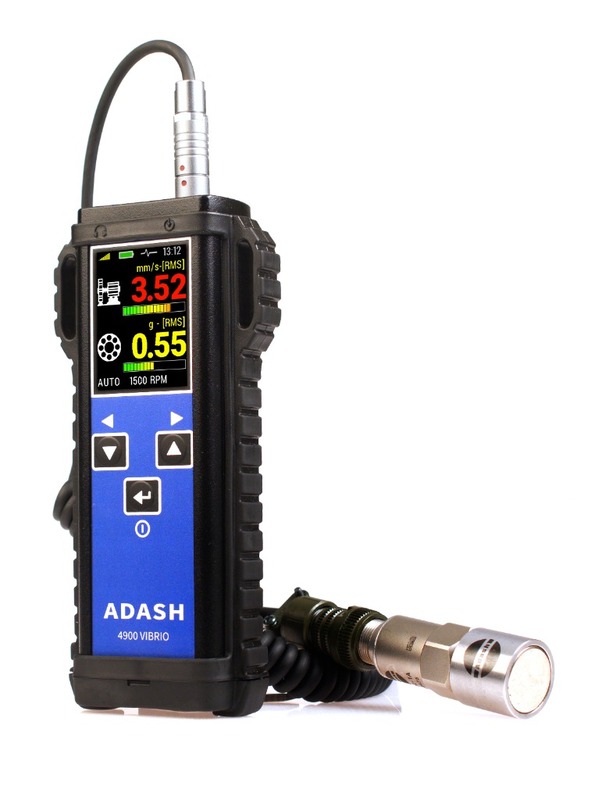

Adash A4900 Vibrio M
All-in-One Handheld Vibration Meter, Analyzer, Data Collector & Stethoscope
The A4900 Vibrio M is an intuitive handheld instrument that performs all essential machinery vibro-diagnostics—including overall velocity & acceleration, bearing condition monitoring, lubrication evaluation, and FASIT automatic fault detection for unbalance, looseness, and misalignment. Includes free DDS diagnostic software support and built-in LED stroboscope & IR temperature sensor.
Adash A4900 Vibrio M Display Modes
Experience the 8 high-resolution diagnostic display screens built directly into the Vibrio M handheld instrument.
OVERALL VALUES - RMS
- Velocity for whole machine body vibrations
- Acceleration for bearing vibrations
- Automatic speed detection
Video Demonstration & Overview
Watch the Adash A4900 Vibrio M in action analyzing industrial machinery and diagnosing bearing faults.
Key Capabilities & Measurement Modes
Everything needed for plant predictive maintenance in a compact 380g hand unit.
ISO 10816-3 Severity
Instantly measures overall RMS velocity (10 - 1000 Hz) and evaluates machine health status against official ISO 10816-3 severity charts.
FASIT Automatic Diagnosis
Adash's patented expert algorithm automatically detects unbalance, misalignment, mechanical looseness, and bearing damage directly on screen.
Vibration Stethoscope
Audible headphones listening output allows maintenance technicians to physically hear bearing noise, cavitation, and gear mesh friction.
FFT Spectrum & Envelope
800-line FFT frequency spectrum and Demodulation Envelope analysis for early detection of roller bearing impacts and gear defects.
Free DDS Software Route
4 MB memory stores over 120,000 overall values. Connects via USB-C to free Adash DDS software for route planning and trend analysis.
LED Strobo & IR Temp
Built-in LED stroboscope for speed measurement (0.17-300 Hz) and non-contact IR temperature sensor (-70°C to +380°C).

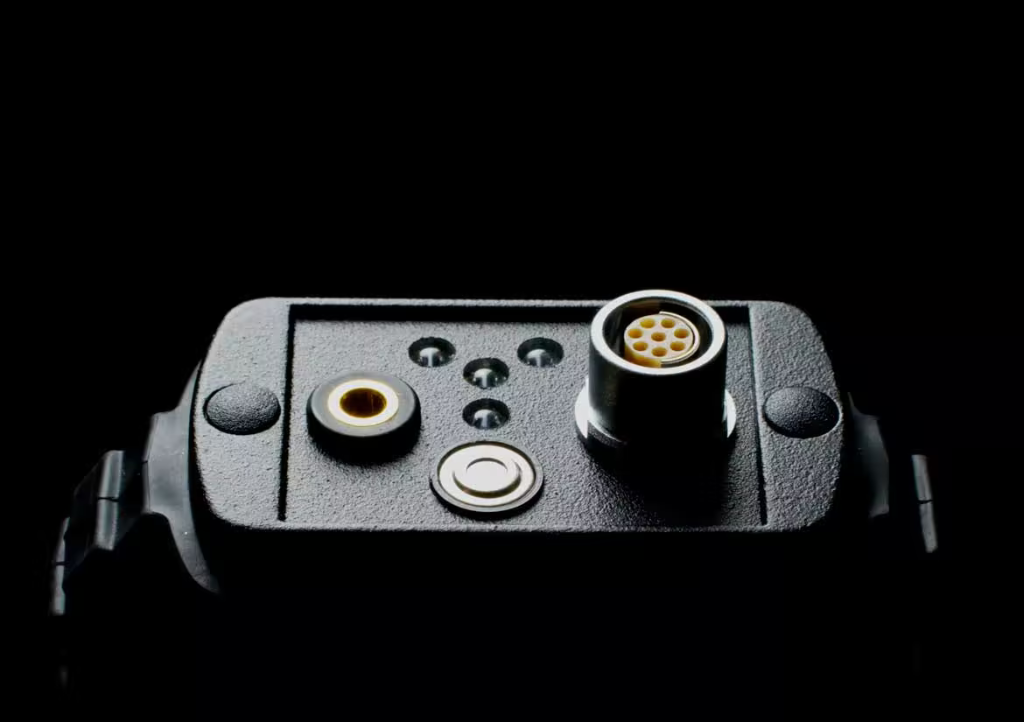

Universal and Tough
Heavy-duty top panel interface built for extreme field conditions, versatile sensor inputs, and rapid single-handed operation.
Heavy Duty Casing
Heavy duty casing with rubber protection bumper for high drop & shock resistance.
LED Flashlight
Built-in ultra-bright LED torch for illuminating dark machinery points in the field.
Proximity Probe Measurement
Direct measurement from proximity probes (optionally) for eddy current displacement monitoring.
Unbreakable Connector
Unbreakable heavy-duty multi-pin locking connector for vibration sensor connection.
USB-C Data Transfer
High-speed USB-C interface for data transfer to DDS software and fast battery charging.
3.5 mm Stethoscope Jack
3.5 mm Jack audio listening output for external stethoscope headphones.
3-Button Intuitive Operation
Simple 3-button keypad allowing fast one-handed operation in the field even with safety gloves.
Technical Specifications
Hardware, sensor, and signal measurement parameters extracted from official datasheet.
Input Sensor & Range
• 60 g PEAK with standard 100 mV/g sensor
• e.g. 600 g PEAK with 10 mV/g sensor (sensitivity is adjustable in device)
Vibration Measurements
• Velocity Peak: 10 - 1 000 Hz [mm/s, ips]
• Acceleration RMS: 500 Hz - 16 000 Hz [g]
• Acceleration Peak: 500 Hz - 16 000 Hz [g]
• Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples
• Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
• Acceleration time*: 1 - 16 000 Hz [g], 2048 samples
• Acceleration spectrum*: 1 - 16 000 Hz [g], 800 lines
Demodulation & Displacement
• Acceleration Demod-Envelope Peak*: 500 - 16 000 Hz [g]
• Acceleration Demod-Envelope time: 500 - 16 000 Hz [g], 2048 samples
• Acceleration Demod-Envelope spectrum*: 500 - 16 000 Hz [g], 800 lines, range 400 Hz
• Displacement RMS: 2 - 100 Hz [µm, mil]
• Displacement 0-Peak: 2 - 100 Hz [µm, mil]
• Displacement Peak-Peak: 2 - 100 Hz [µm, mil]
* Marked measurements available in DDS software for Vibrio M
IR Temperature Sensor
Stethoscope & Torch
• LED Torch: Built-in inspection flashlight
• Stethoscope: 1 x AC signal 8 Ω / 0.5 W output for listening machine & bearing noises via external headphones
Memory & Data Storage
• 120,960 overall values
• or 900 measurements of 800-line spectra
• or 2,048 sample time signals
Data storing: Off-Route & Route modes with DDS software (free download)
Interface & Software
• DDS Software: Free version of DDS software (limited database size) & Licensed DDS software
Display Screen
Power & Operating Temp
• Operating Temperature: -5°C to +55°C
Dimensions & Enclosure
• Case Rating: IP54 rating, aluminium heavy duty housing
• Weight: 380 g (without cable, sensor and magnet) / 590 g including cable, sensor and magnet
Included Accessories
Vibrio M + Free DDS Software
Free trending, route management, and diagnostic data analysis software suite for Windows.
Machinery Trend Analysis & History
Track long-term RMS velocity, acceleration, and bearing condition trends over months & years. Detect deteriorating machine health before unexpected failures occur.
Route Data Collection & Hierarchy
Organize your factory machinery into intuitive trees (Plant → Machine → Bearing Point). Download measurement routes to Vibrio M via USB for fast field inspection.
Automated Reporting & Diagnostics
Generate comprehensive PDF vibration inspection reports with ISO 10816 alarm limits, FFT spectra, and FASIT fault identification for clients and management.
Download Free Adash DDS Software
Compatible with Windows 10/11. Fully functional free version included with every Vibrio M.
